If your Mazda CX-5 mirror is not folding properly, especially the driver’s side, you are dealing with a well-documented design flaw affecting models from 2016 to 2022. This issue stems from water ingress through the wire-entry grommet, tight clearance at the pivot point, and degraded lubrication rather than a simple electrical fault. The mirror may start to fold but stop mid-way, make grinding noises, or fail entirely after rain or car washes. This guide provides step-by-step diagnosis, temporary fixes, and permanent solutions using Mazda’s own Technical Service Bulletins so you can restore full mirror function and eliminate dangerous blind spots.
Identify How Your Mirror Is Failing
Before attempting repairs, determine exactly how your mirror is malfunctioning. Accurate diagnosis saves time and helps you choose the right fix.
Mirror Stops Mid-Folding
The most common symptom involves the driver’s side mirror beginning to fold but halting before fully retracting. This leaves the mirror at an awkward angle that creates blind spots and increases collision risk in tight parking spaces.
Watch for these indicators:
• Listen for clicking or labored motor sounds during operation
• Gently push the mirror manually to test whether it folds easily when helped
• Note if the issue occurs more frequently after wet weather
One Side Fails While the Other Works
In approximately 70% of cases, only the driver’s side mirror fails while the passenger side functions normally. This pattern occurs because driver-side mirrors face more road spray, curbside impact, and weather exposure.
Failure typically worsens after:
• Heavy rain
• High-pressure car washes
• Cold weather snaps
Intermittent Operation After Moisture Exposure
If the mirror works sometimes, especially after drying out, water inside the motor housing is likely the culprit. The classic trigger involves high-pressure washing or extended rainfall followed by temporary malfunction.
Users commonly report: “It stopped folding after a wash but started working again after two days.”
No Response With Audible Clicking
When pressing the fold button or locking the car produces a click from the door but no mirror movement, the signal reaches the system but the motor cannot overcome internal resistance. Try giving the mirror a light manual nudge inward. If it then completes the fold, the motor is functional but struggling against friction.
Diagnose the Root Cause
Mazda’s Technical Service Bulletins confirm this is not random failure but a design-linked defect. Understanding the cause helps you choose the correct repair approach.
Water Ingress Through Wire-Entry Grommet
The primary cause of folding failure involves moisture entering through the wire-entry grommet, the rubber seal where the wiring harness connects to the mirror motor.
What happens when water gets inside:
• Corrosion develops on electrical contacts and PCB traces
• Metal worm gears begin to rust
• Plastic components swell or crack
• Factory lubrication washes out
The secondary grommets on the housing sides are non-critical and sealing them provides minimal benefit.
Mechanical Binding From Tight Clearance
Even without water exposure, the original design has insufficient clearance between the mirror frame and base. This causes friction to build at the pivot point, especially after minor misalignment.
Cold weather makes this worse as plastic contracts and lubricants thicken. The motor hits overcurrent protection and shuts down mid-cycle.
Internal Gear and Motor Stress
The folding mechanism uses a plastic gear train driven by a metal worm gear with a compression spring. Moisture and grit cause rust on the worm gear, swollen or cracked plastic gears, and spring fatigue. Even slight resistance can exceed the motor’s torque limit, triggering automatic shutdown.
Overcurrent Protection Activation
The motor includes built-in overload protection designed for ice or snow blockage. Normal wear combined with moisture creates false obstruction detection, causing the motor to start, strain, then cut off after one to two seconds.
Use Mazda’s Official TSBs for Repair Guidance
Mazda has not issued a recall but has acknowledged this widespread issue through multiple Technical Service Bulletins. Use these to ensure you receive the correct repair.

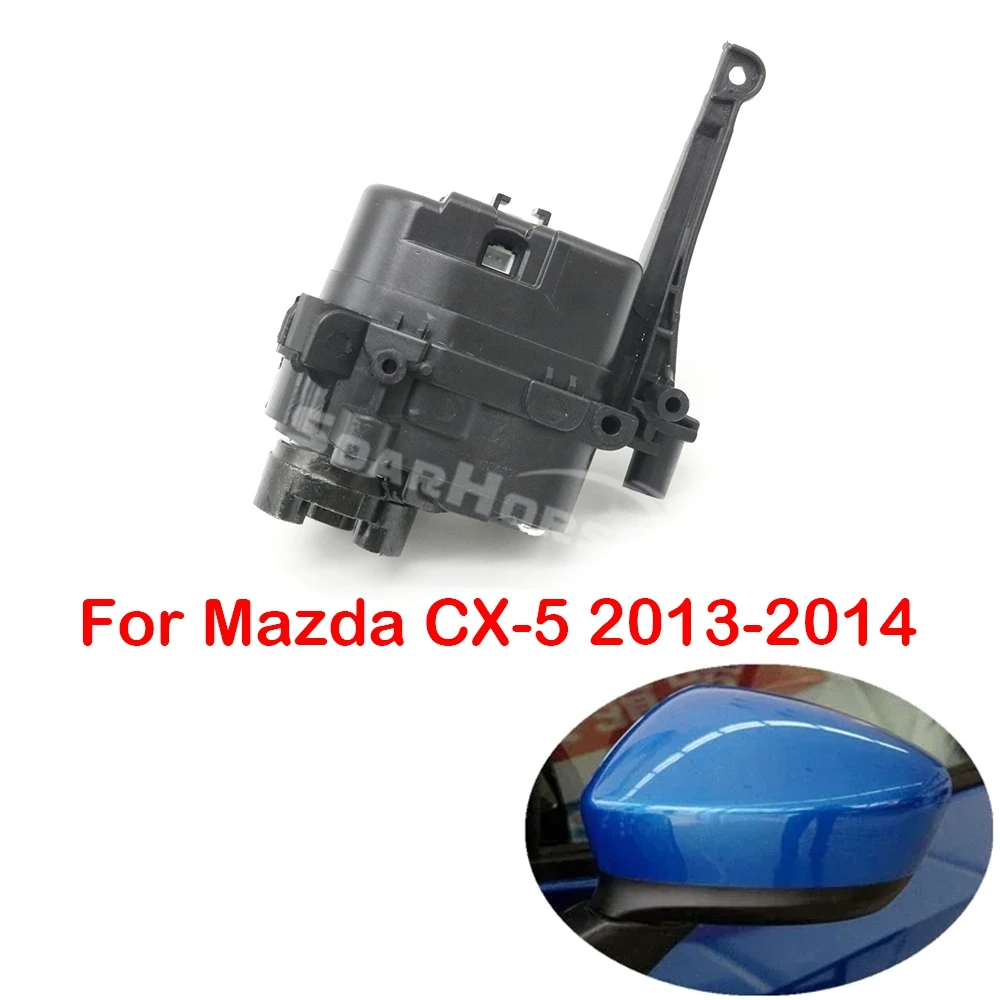

TSB E90123: The Core Fix
This primary TSB applies to CX-5 and CX-9 models from 2016 to 2020. It identifies water ingress, tight clearance, and lubrication failure as the root causes.
The recommended solution involves replacing the entire folding unit with an updated part that includes:
1. Enlarged hole in the mirror frame to reduce binding
2. Extended overlapping area of the waterproof seal for better moisture resistance
3. Improved washer material plus addition of a second washer to lower friction
Production changes implementing these fixes occurred for parts built after March 10-11, 2020.
TSB 09-011-20: Moisture-Resistant Padding
This TSB covers CX-5, CX-9, Mazda3, and Mazda6 models from 2017 to 2020. The action requires replacing the motor assembly and adding moisture-resistant padding around the wire entry point.
Many owners have successfully argued for goodwill coverage under this TSB when presenting safety concerns.
Why Generic Replacements Fail
Many shops install standard OEM or aftermarket motors without addressing the design flaws. This leads to repeat failures within months.
Always insist on: “Updated folding unit per TSB E90123”
Avoid: Simple motor swaps that ignore sealing and clearance improvements
Try Quick DIY Fixes for Recent Moisture Problems
If the mirror failed immediately after rain or a car wash, water is likely the culprit. These low-cost methods often restore function.
Spray WD-40 Into the Wire-Entry Grommet
WD-40 displaces water and can revive a soaked motor. This works best for recent moisture exposure.
Follow these steps:
1. Locate the grommet at the back of the mirror housing where wires enter
2. Insert the WD-40 straw directly into the grommet opening, not the outer casing
3. Spray one short burst lasting one to two seconds
4. Manually fold and unfold the mirror five to ten times
5. Test automatic function via lock/unlock or console switch
This method works because it displaces trapped moisture, cleans minor corrosion, and lubricates seized gears temporarily. The limitation is that it provides only temporary relief if PCB or gears are already damaged.
Reset the Mirror With the Cycling Method
Sometimes the motor loses positional feedback. Reset it by cycling the fold and unfold command.
Mirror Reset Procedure
Press the fold button. As movement starts, immediately press unfold. Repeat this sequence three to four times. Let the mirror complete a full cycle.
This can re-engage the motor, clear false obstruction signals, or re-sync internal positioning. Users report success with this simple technique when mirrors become sluggish.
Remove and Clean Internally for Stubborn Cases
If WD-40 does not work, open the mirror housing for full inspection and cleaning.
Mirror Removal Steps
- Center the mirror glass in the neutral position
- Push from the rear of the glass using thumbs near the base
- Release the clips, working slowly to avoid breakage
- Disconnect the main mirror harness and folding motor harness
- Remove the wire-entry grommet to access the PCB
Internal Inspection and Cleaning
Check for water droplets on the PCB or motor housing. Clean contacts with 90% or higher isopropyl alcohol and a cotton swab. Inspect gears for rust, cracks, or debris. Apply dielectric grease lightly to the folding shaft, electrical connectors, and gear teeth.
Reassembly Tips
Reinstall the grommet securely before closing. Snap the mirror glass back into place, listening for all clips to engage. Test folding before closing the door.
Broken clips are common, so work slowly and apply even pressure throughout the process.
Replace With Updated Folding Unit for Permanent Fix
For lasting reliability, replace the entire folding unit with the TSB-compliant updated part.
Dealer Repair: Best for Warranty and Quality
Expect to pay $580 to $750 for dealer repair. Labor typically takes one to one and a half hours per mirror. The advantages include use of the updated part with improved seal and clearance, work by trained technicians, and possible warranty or goodwill coverage.
Always ask the dealer: “Will you install the updated folding unit per TSB E90123?”
Independent Mechanic Option
Independent mechanic repairs cost $450 to $600. The risk involves some shops using old-spec parts. Provide your mechanic with TSB E90123 details and insist on the updated unit.
DIY Replacement
This advanced procedure requires Torx T20 and T25 screwdrivers, plastic trim tools, and wiring harness disconnect knowledge. Label all connectors before disconnecting to ensure proper reassembly.
Prevent Future Failures
Even with a new unit, recurrence is possible without proper care.
Avoid High-Pressure Water
Never use high-pressure sprayers near mirrors. Hand wash or use low-pressure rinse settings instead. Dry mirrors thoroughly after washing.
Never Manually Fold the Mirrors
The mechanism is not designed for hand operation. Manual folding risks stripping gears, damaging the motor, or breaking the internal linkage. More importantly, it can disable the locking mechanism, allowing mirrors to fold at speed.
Perform Monthly Functional Checks
Test auto-fold when locking the car. Listen for grinding or hesitation. Look for water inside the mirror glass.
Apply Dielectric Grease Proactively
During maintenance, apply dielectric grease to the wire-entry grommet, electrical connectors, and folding pivot points if accessible. This prevents corrosion and maintains smooth operation.
Argue for Warranty or Goodwill Repair
If your CX-5 is out of warranty, push for a goodwill repair. Many owners have succeeded.
Build Your Case
Document the issue with a video showing incomplete folding. Cite TSBs E90123 and 09-011-20 as proof of a known defect. Highlight safety risks including blind spots from skewed mirrors, risk of in-motion folding, and manual adjustment dangers while driving.
Owners in Malaysia report receiving free motor replacements under warranty with approximately one month processing time.
Buy Used? Inspect Mirrors Before Purchase
For used CX-5 buyers, test the folding mirrors before signing.
Pre-Purchase Inspection
Lock the car and watch both mirrors fold fully and simultaneously. Unlock and check for complete extension. Listen for grinding or hesitation. Ask the seller: “Has the driver’s side mirror ever been replaced?”
A partial folding or one-sided failure should lower the value or prompt repair negotiation before purchase.
Frequently Asked Questions About CX-5 Mirror Not Folding
Why does only my driver’s side mirror fail?
The driver’s side mirror faces more exposure to road spray, curbside impact, rain, and car wash water. The wire-entry grommet on this side wears faster due to vibration and environmental exposure, making it the primary failure point.
Can I fix this with just lubrication?
Lubrication helps if the failure is recent and moisture-related. Spray WD-40 into the wire-entry grommet for a temporary fix. However, if gears are already damaged or the PCB is corroded, lubrication alone will not resolve the issue.
Will a simple motor replacement fix this?
No. A simple motor swap without addressing the design flaws typically results in repeat failure within months. Always request the updated folding unit per TSB E90123, which includes improved sealing, enlarged clearance holes, and additional washers.
Is this covered under warranty?
Many owners have successfully claimed coverage under Mazda’s goodwill policy, especially when presenting safety concerns. If your vehicle is newer or still under factory warranty, request mirror motor or folding unit replacement. Document the issue with video before visiting the dealer.
How much does dealer repair cost?
Dealer repair typically costs $580 to $750 depending on labor rates and region. This includes the updated TSB-compliant part and professional installation.
Can I still drive with a non-folding mirror?
Yes, but with reduced safety. The mirror remains adjustable, but you lose automatic folding convenience. More importantly, partial folding creates blind spots, and the mirror may be more vulnerable to damage in tight parking spaces.
Key Takeaways for Fixing Your CX-5 Mirror
The CX-5 mirror not folding issue stems from design flaws confirmed by Mazda’s own Technical Service Bulletins. Water ingress through the wire-entry grommet remains the primary cause, followed by tight clearance and lubrication breakdown.
For immediate relief, try WD-40 application into the wire-entry grommet or cycle the fold/unfold function. For stubborn cases, remove and clean the internal components, inspecting for corrosion and applying dielectric grease.
The permanent solution requires replacing the entire folding unit with the updated TSB-compliant part that includes the enlarged hole, improved seal, and additional washer. Always verify the shop will use the updated part rather than a generic motor swap.
Prevent recurrence by avoiding high-pressure water exposure, never manually folding the mirrors, and performing monthly functional checks. If out of warranty, argue for goodwill repair by citing the TSBs and highlighting safety concerns.
Your CX-5 mirror function directly impacts safety and visibility. By using Mazda’s documented fixes and following proper maintenance, you can restore reliable operation and avoid repeat repairs.
